MACO-300

MACO-300

  • MACO-300

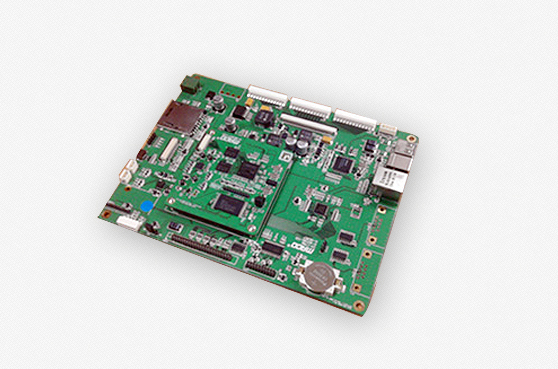

  • A multi-function industrial controller with high-tech mobile processor applied.

DTOS (Design To Service)

  • Do you need an automatic controlling device that moves like a robot according to certain conditions or orders?
  • Do you have the idea but not the technology to materialize it?
  • EST can design and manufacture any electronic control device to meet the customer’s requests.
  • Product specifications and
    characteristics
    • SAMSUNG S3C6410 667MHz ARM Core RISC microprocessor
    • 128MByte 266MHz Mobile DDR SDRAM
    • 256MByte Nand Flash MEMORY
    • 10/100 Ethernet Controller (LAN9220)
    • USB2.0 HOST(UBI9032)
    • USB1.1 HOST
    • USB DEVICE
    • Wolfson WM8960 Audio Codec with 1W Stereo Speaker Amplifier
    • 18bit TTL & LVDS Display
    • Real Time Clock
    • RS485 & 422
    • SDHC Memory
    • 4 Wire Resistant Film Method Tough Panel
    • SDIO Interface / Wi2Wi W2CBW003 WIFI Module(802.11 b/g)
MACO-300

Clients and application examples

  • OEM supply to Makosys Co. Ltd.
  • Applied technology to injection controllers of LS Industrial Electronics

Applied technologies

  • Circuit design and PCB artwork for ARM CPU BOARD HARDWARE
  • WINCE O/S Porting technology
